Authorized distributor · Thailand

ISO Transformers, made in Tokyo

Soundaries is the authorized distributor of ISO Transformers in Thailand. ISO carries on the design and winding craft of the original ISO Co., the maker known worldwide as TANGO. Output transformers use Nippon Steel Orient Hi-B cut-cores, and power transformers use Orient-core with a magnetic shield. They are the same transformers we use in our own amplifiers.

60 modelsOutput, interstage, line, power and chokes

Your mains voltagePower transformers wound for 220–240 V at no extra charge

Matched to your circuitWe help you choose the right model for your tube

Search ISO models

Single-ended output

หม้อแปลงเอาต์พุต ซิงเกิลเอนด์

Orient Hi-B cut-core output transformers for single-ended amplifiers, from the 12 W FC-12S to the 40 W FC-40 series for 211 and 845.

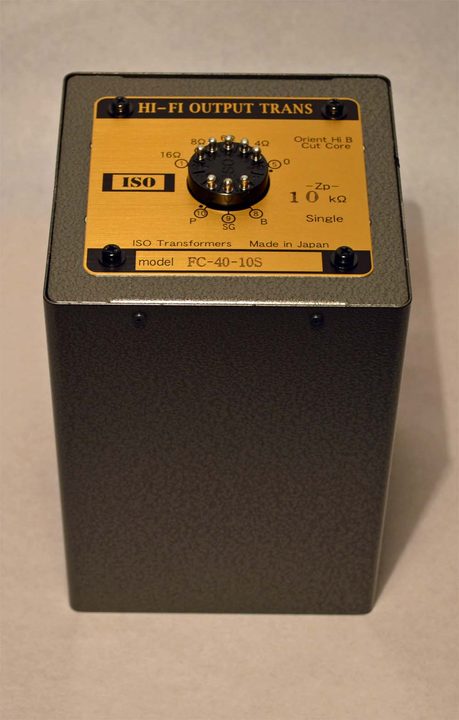

FC-40-10S40 W · 10 kΩFor 211, 845฿24,600

ISO FC-40-10SMade in Japan

Power: 40 W (30 Hz)
Impedance: Pri 10 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 20 Hz – 55 kHz
Primary inductance: 65 H (1 mW) · 80 H max at 70 mA
Max DC current: 130 mA
Efficiency: 0.23 dB / 16 Ω
Application: 211, 845

Ask about FC-40-10SStock varies; we confirm availability and delivery time.

FC-40-5S40 W · 5 kΩFor DA30, '50, 845฿22,700

ISO FC-40-5SMade in Japan

Power: 40 W (30 Hz)
Impedance: Pri 5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 18 Hz – 70 kHz
Primary inductance: 35 H (1 mW) · 42 H max at 120 mA
Max DC current: 200 mA
Efficiency: 0.23 dB / 16 Ω
Application: DA30, '50, 845

Ask about FC-40-5SStock varies; we confirm availability and delivery time.

FC-40-3.5S40 W · 3.5 kΩFor 300B, PX25฿22,700

ISO FC-40-3.5SMade in Japan

Power: 40 W (30 Hz)
Impedance: Pri 3.5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 15 Hz – 90 kHz
Primary inductance: 28 H (1 mW) · 38 H max at 120 mA
Max DC current: 250 mA
Efficiency: 0.23 dB / 16 Ω
Application: 300B, PX25

Ask about FC-40-3.5SStock varies; we confirm availability and delivery time.

FC-40-2.7S40 W · 2.7 kΩFor 300B฿22,700

ISO FC-40-2.7SMade in Japan

Power: 40 W (30 Hz)
Impedance: Pri 2.7 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 15 Hz – 90 kHz
Primary inductance: 25 H (1 mW) · 30 H max at 120 mA
Max DC current: 300 mA
Efficiency: 0.22 dB / 16 Ω
Application: 300B

Ask about FC-40-2.7SStock varies; we confirm availability and delivery time.

FC-40-1.5S40 W · 1.5 kΩFor 300B parallel฿22,700

ISO FC-40-1.5SMade in Japan

Power: 40 W (30 Hz)
Impedance: Pri 1.5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 15 Hz – 120 kHz
Primary inductance: 10 H (1 mW) · 15 H max at 170 mA
Max DC current: 400 mA
Efficiency: 0.22 dB / 16 Ω
Application: 300B parallel

Ask about FC-40-1.5SStock varies; we confirm availability and delivery time.

FC-30-10S30 W · 10 kΩFor 211, 845฿14,500

ISO FC-30-10SMade in Japan

Power: 30 W (40 Hz)
Impedance: Pri 10 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 30 Hz – 70 kHz
Primary inductance: 40 H (1 mW) · 45 H max at 70 mA
Max DC current: 90 mA
Efficiency: 0.23 dB / 16 Ω
Application: 211, 845

Ask about FC-30-10SStock varies; we confirm availability and delivery time.

FC-30-3.5SⅡ30 W · 3.5 kΩFor 300B, PX25฿14,500

ISO FC-30-3.5SⅡMade in Japan

Power: 30 W (40 Hz)
Impedance: Pri 3.5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 20 Hz – 100 kHz
Primary inductance: 20 H (1 mW) · 26 H max at 80 mA
Max DC current: 180 mA
Efficiency: 0.19 dB / 16 Ω
Application: 300B, PX25

Ask about FC-30-3.5SⅡStock varies; we confirm availability and delivery time.

FC-30-2.5S30 W · 2.5 kΩFor AD1, Ed, 2A3฿14,500

ISO FC-30-2.5SMade in Japan

Power: 30 W (40 Hz)
Impedance: Pri 2.5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−2 dB): 20 Hz – 120 kHz
Primary inductance: 14 H (1 mW) · 20 H max at 90 mA
Max DC current: 250 mA
Efficiency: 0.19 dB / 16 Ω
Application: AD1, Ed, 2A3

Ask about FC-30-2.5SStock varies; we confirm availability and delivery time.

FC-20S20 W · 5 / 3.5 / 2.5 kΩFor 300B, '50, PX25, PX4, 2A3, VT-52฿8,900

ISO FC-20SMade in Japan

Power: 20 W (50 Hz at 5 kΩ · 40 Hz at 3.5 kΩ · 35 Hz at 2.5 kΩ)
Impedance: Pri 5 k / 3.5 k / 2.5 kΩ · Sec 8, 16 Ω
Response (−2 dB): 35 Hz – 80 kHz (5 k) · 25 Hz – 80 kHz (3.5 k) · 20 Hz – 100 kHz (2.5 k)
Primary inductance: 16 H (1 mW) · 18 H max at 80 mA
Max DC current: 140 mA
Efficiency: 0.26 / 0.34 / 0.47 dB / 16 Ω
Application: 300B, '50, PX25, PX4, 2A3, VT-52

Ask about FC-20SStock varies; we confirm availability and delivery time.

FC-20-14S20 W · 14 kΩFor VT62, 801A, VT25 (10)฿8,900

ISO FC-20-14SMade in Japan

Power: 20 W (60 Hz)
Impedance: Pri 14 kΩ · Sec 4, 8, 16 Ω
Response (−2 dB): 25 Hz – 35 kHz
Primary inductance: 70 H (1 mW) · 90 H max at 30 mA
Max DC current: 65 mA
Efficiency: 0.29 dB / 16 Ω
Application: VT62, 801A, VT25 (10)

Ask about FC-20-14SStock varies; we confirm availability and delivery time.

FC-20-107S20 W · 10 / 7 kΩFor VT25 (10), 6N6G, 42, 6V6฿8,900

ISO FC-20-107SMade in Japan

Power: 20 W (60 Hz at 10 kΩ · 50 Hz at 7 kΩ)
Impedance: Pri 10 k / 7 kΩ · Sec 8, 16 Ω
Response (−2 dB): 40 Hz – 40 kHz (10 k) · 25 Hz – 50 kHz (7 k)
Primary inductance: 30 H (1 mW) · 38 H max at 55 mA
Max DC current: 100 mA
Efficiency: 0.19 / 0.25 dB / 16 Ω
Application: VT25 (10), 6N6G, 42, 6V6

Ask about FC-20-107SStock varies; we confirm availability and delivery time.

FC-12S12 W · 7 / 5 / 3.5 / 2.5 kΩFor 45, 71A, EL34, 6L6, 6V6, 6BQ5฿7,400

ISO FC-12SMade in Japan

Power: 12 W (70 Hz at 7 k · 60 Hz at 5 k · 50 Hz at 3.5 k · 40 Hz at 2.5 k)
Impedance: Pri 7 k / 5 k (Sec 8, 16 Ω) · 3.5 k / 2.5 k (Sec 4, 8 Ω)
Response (−2 dB): 45 Hz – 45 kHz (7 k) to 20 Hz – 80 kHz (2.5 k)
Primary inductance: 16 H (1 mW) · 20 H max at 60 mA
Max DC current: 80 mA
Efficiency: 0.24 – 0.58 dB
Application: 45, 71A, EL34, 6L6, 6V6, 6BQ5

Ask about FC-12SStock varies; we confirm availability and delivery time.

Push-pull output

หม้อแปลงเอาต์พุต พุชพูล

Orient Hi-B cut-core push-pull output transformers from 25 W to 120 W, with wide bandwidth down to 4 Hz.

FC-120-14120 W · 14 kΩFor 211฿22,700

ISO FC-120-14Made in Japan

Power: 120 W (30 Hz)
Impedance: Pri 14 kΩ · Sec 4, 6, 8, 16 Ω
Response (−1 dB): 4 Hz – 50 kHz
Primary inductance: 360 H (1 mW) · 1,600 H max
Max DC current: 260 mA (two tubes) · 5 mA unbalance
Efficiency: 0.16 dB
Application: 211

Ask about FC-120-14Stock varies; we confirm availability and delivery time.

FC-120-8120 W · 8 kΩFor EL156, KT66฿22,700

ISO FC-120-8Made in Japan

Power: 120 W (30 Hz)
Impedance: Pri 8 kΩ · Sec 4, 6, 8, 16 Ω
Response (−1 dB): 4 Hz – 60 kHz
Primary inductance: 220 H (1 mW) · 970 H max
Max DC current: 320 mA (two tubes) · 6 mA unbalance
Efficiency: 0.16 dB
Application: EL156, KT66

Ask about FC-120-8Stock varies; we confirm availability and delivery time.

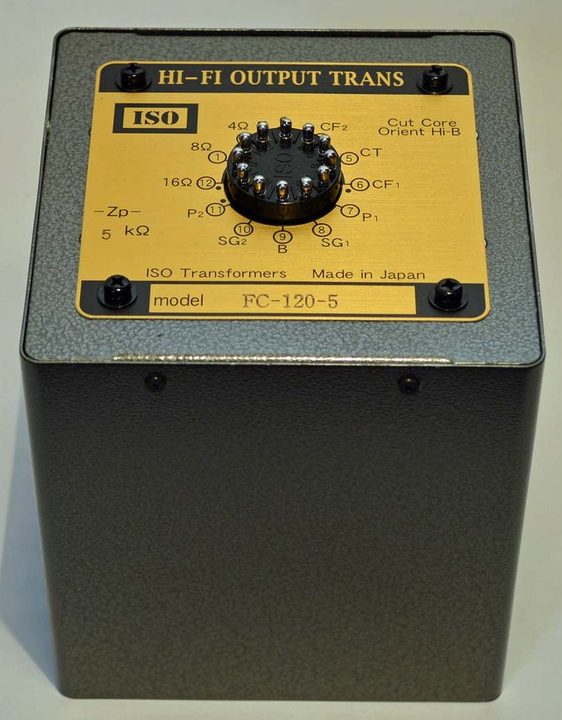

FC-120-5120 W · 5 kΩ · cathode NFB windingFor 300B, KT88, KT66, EL156฿24,100

ISO FC-120-5Made in Japan

Power: 120 W (30 Hz)
Impedance: Pri 5 kΩ · Sec 4, 8, 16 Ω
Response (−1 dB): 4 Hz – 90 kHz
Primary inductance: 160 H (1 mW) · 580 H max
Max DC current: 420 mA (two tubes) · 8 mA unbalance
Efficiency: 0.18 dB
Extra: Includes cathode NFB winding
Application: 300B, KT88, KT66, EL156

Ask about FC-120-5Stock varies; we confirm availability and delivery time.

FC-120-3.5120 W · 3.5 kΩFor 300B, 6550, EL156฿22,700

ISO FC-120-3.5Made in Japan

Power: 120 W (30 Hz)
Impedance: Pri 3.5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−1 dB): 4 Hz – 100 kHz
Primary inductance: 120 H (1 mW) · 420 H max
Max DC current: 500 mA (two tubes) · 12 mA unbalance
Efficiency: 0.16 dB
Application: 300B, 6550, EL156

Ask about FC-120-3.5Stock varies; we confirm availability and delivery time.

FC-60-560 W · 5 kΩFor 300B, KT88, KT66, EL156฿14,500

ISO FC-60-5Made in Japan

Power: 60 W (30 Hz)
Impedance: Pri 5 kΩ · Sec 4, 6, 8, 16 Ω
Response (−1 dB): 4 Hz – 80 kHz
Primary inductance: 160 H (1 mW) · 380 H max
Max DC current: 270 mA (two tubes) · 7 mA unbalance
Efficiency: 0.21 dB
Application: 300B, KT88, KT66, EL156

Ask about FC-60-5Stock varies; we confirm availability and delivery time.

FC-40-840 W · 8 kΩFor 6L6GC, 7591, 6F6฿8,900

ISO FC-40-8Made in Japan

Power: 40 W (45 Hz)
Impedance: Pri 8 kΩ · Sec 4, 8, 16 Ω
Response (−1 dB): 5 Hz – 60 kHz
Primary inductance: 150 H (1 mW) · 500 H max
Max DC current: 200 mA (two tubes) · 5 mA unbalance
Efficiency: 0.24 dB
Application: 6L6GC, 7591, 6F6

Ask about FC-40-8Stock varies; we confirm availability and delivery time.

FC-40-6.640 W · 6.6 kΩFor KT66, 6L6, EL34, 7591฿8,900

ISO FC-40-6.6Made in Japan

Power: 40 W (45 Hz)
Impedance: Pri 6.6 kΩ · Sec 4, 8, 16 Ω
Response (−1 dB): 7 Hz – 50 kHz
Primary inductance: 160 H (1 mW) · 330 H max
Max DC current: 200 mA (two tubes) · 7 mA unbalance
Efficiency: 0.25 dB
Application: KT66, 6L6, EL34, 7591

Ask about FC-40-6.6Stock varies; we confirm availability and delivery time.

FC-40-540 W · 5 kΩFor 2A3, 6B4G, EL34, 6L6฿8,900

ISO FC-40-5Made in Japan

Power: 40 W (45 Hz)
Impedance: Pri 5 kΩ · Sec 4, 8, 16 Ω
Response (−1 dB): 5 Hz – 80 kHz
Primary inductance: 150 H (1 mW) · 320 H max
Max DC current: 270 mA (two tubes) · 7 mA unbalance
Efficiency: 0.25 dB
Application: 2A3, 6B4G, EL34, 6L6

Ask about FC-40-5Stock varies; we confirm availability and delivery time.

FC-25-825 W · 8 kΩFor 6V6, 6BQ5, 71A฿7,400

ISO FC-25-8Made in Japan

Power: 25 W (50 Hz)
Impedance: Pri 8 kΩ · Sec 4, 8, 16 Ω
Response (−1 dB): 7 Hz – 50 kHz
Primary inductance: 160 H (1 mW) · 350 H max
Max DC current: 130 mA (two tubes) · 6 mA unbalance
Efficiency: 0.3 dB
Application: 6V6, 6BQ5, 71A

Ask about FC-25-8Stock varies; we confirm availability and delivery time.

FC-25-525 W · 5 kΩFor 45, 6V6, 6CW5฿7,400

ISO FC-25-5Made in Japan

Power: 25 W (50 Hz)
Impedance: Pri 5 kΩ · Sec 4, 8, 16 Ω
Response (−1 dB): 7 Hz – 80 kHz
Primary inductance: 100 H (1 mW) · 210 H max
Max DC current: 160 mA (two tubes) · 7 mA unbalance
Efficiency: 0.3 dB
Application: 45, 6V6, 6CW5

Ask about FC-25-5Stock varies; we confirm availability and delivery time.

Interstage

หม้อแปลงอินเตอร์สเตจ

1:1 interstage transformer for coupling a driver stage to the output tube without a capacitor.

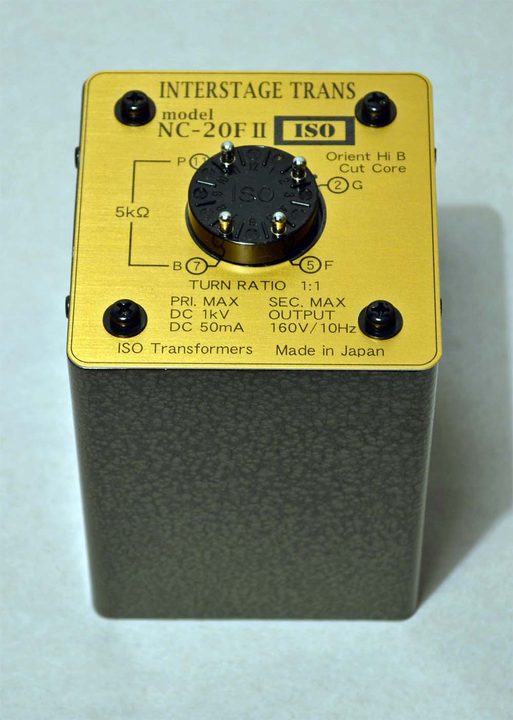

NC-20FⅡ1:1 · 5 kΩFor 6AH4, 6V6 (triode), 5687, 6463฿15,300

ISO NC-20FⅡMade in Japan

Primary impedance: 5 kΩ (rp = 1–10 kΩ)
Turns ratio: 1 : 1
Response (−2 dB): 15 Hz – 100 kHz
Primary inductance: 75 H at 25 mA
Max DC current: 50 mA
Max secondary output: 160 V at 10 Hz
Application: 6AH4, 6V6 (triode), 5687, 6463

Ask about NC-20FⅡStock varies; we confirm availability and delivery time.

Line & input

หม้อแปลงไลน์และอินพุต

Line output and 600 Ω input transformers for preamplifiers and balanced connections.

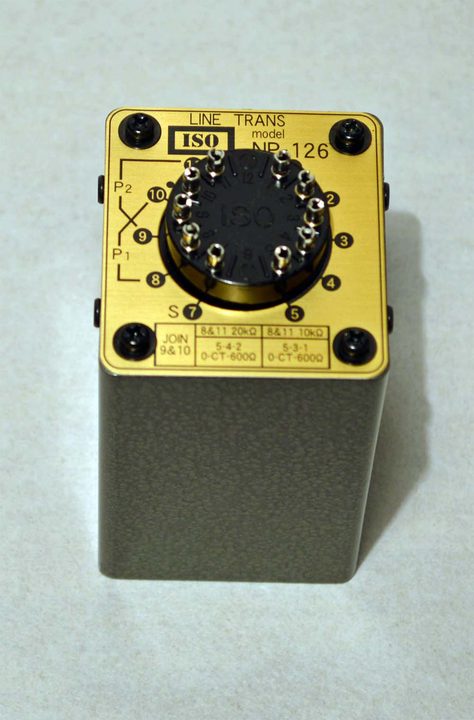

NP-12620k / 10k : 0–1.2k ΩFor Line output; input transformer in reverse฿8,400

ISO NP-126Made in Japan

Impedance: Pri 20 kΩ (split) : Sec 0–150–300–600–1.2 kΩ · Pri 10 kΩ (split) : Sec 0–75–150–300–600 Ω
Turns ratio: 1 : 0.245
Response (−2 dB): 20 Hz – 30 kHz
Primary inductance: 110 H at 10 mA
Max primary DC: 20 mA
Max secondary output: 10 Vrms (20 Hz)
Application: Line output; input transformer in reverse

Ask about NP-126Stock varies; we confirm availability and delivery time.

NN-606600 : 600 Ω inputFor 600 Ω balanced input฿8,400

ISO NN-606Made in Japan

Impedance: Pri 600 Ω / 150 Ω (split) · Sec 600 Ω / 150 Ω (split)
Turns ratio: 1+1 : 1+1
Secondary output: 10 V (20 Hz)
Primary inductance: 60 H (1 V, 50 Hz)
Response (−1 dB): 5 Hz – 60 kHz
Application: 600 Ω balanced input

Ask about NN-606Stock varies; we confirm availability and delivery time.

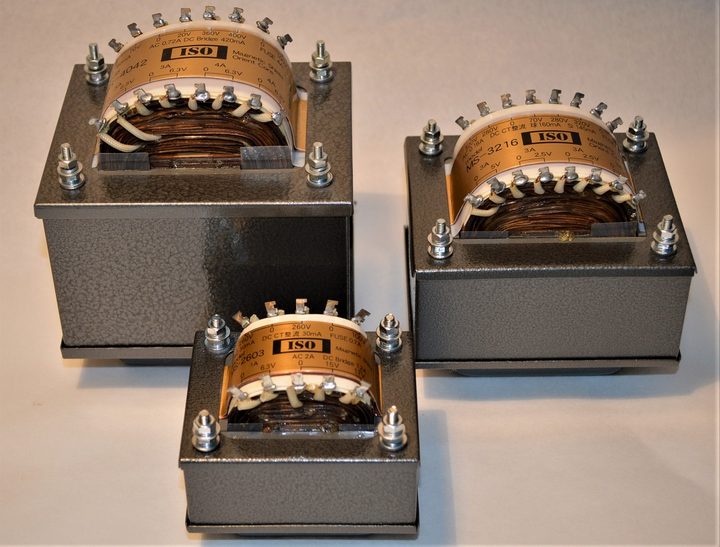

Power · bowl case

หม้อแปลงไฟ ทรงโบว์ล

Orient-core power transformers with magnetic shield in the classic bowl-shaped case. Primary voltage can be changed to 220–240 V at no extra charge.

MS-4042360–400 V · 420 mA bridgeFor KT88, 6550A, EL156 PP ×2฿11,400

ISO MS-4042Made in Japan

Secondaries: 0–20–360–400 V AC 0.72 A (DC bridge 420 mA) · 70 V AC 60 mA · 6.3 V 4 A ×2 · 6.3 V 3 A ×2
Application: KT88, 6550A, EL156 PP ×2
Size: W120×D105×H110 mm (under chassis 36 mm)
Weight: 6.5 kg

Ask about MS-4042Primary wound for your mains voltage at no extra charge.

MS-1913145–185 V · voltage doubler 350 mAFor KT88, KT66, EL34 PP ×2฿10,000

ISO MS-1913Made in Japan

Secondaries: 0–10–145–165–185 V AC 1.3 A (DC voltage doubler 350 mA) · 65 V AC 0.15 A · 6.3 V 3.6 A ×2 · 6.3 V 2.5 A ×2
Application: KT88, KT66, EL34 PP ×2
Size: W120×D105×H100 mm (under chassis 32 mm)
Weight: 5.7 kg

Ask about MS-1913Primary wound for your mains voltage at no extra charge.

MS-4023Ⅱ360–400 V CT · 250 mAFor 300B SE ×2, KT88 PP ×1฿9,000

ISO MS-4023ⅡMade in Japan

Secondaries: 400–360–0–100–360–400 V AC 0.23 A (DC CT tube 250 mA / Si 220 mA) · 5 V 3.5 A ×2 · 0–6.3–10 V 3.5 A · 0–5–6.3 V 3.5 A
Application: 300B SE ×2, KT88 PP ×1
Size: W120×D105×H95 mm (under chassis 32 mm)
Weight: 5.3 kg

Ask about MS-4023ⅡPrimary wound for your mains voltage at no extra charge.

MS-3228280–320 V CT · 300 mAFor 2A3, 6B4G, 6L6, VT52 PP ×2฿9,000

ISO MS-3228Made in Japan

Secondaries: 320–280–0–70–280–320 V AC 0.28 A (DC CT tube 300 mA / Si 260 mA) · 0–2.5–6.3 V 5.2 A ×2 · 6.3 V 3 A · 5 V 3 A
Application: 2A3, 6B4G, 6L6, VT52 PP ×2
Size: W120×D105×H95 mm (under chassis 32 mm)
Weight: 5.3 kg

Ask about MS-3228Primary wound for your mains voltage at no extra charge.

MS-4019280–400 V CT · 190 mAFor PX25, PX4, AD1, RE604 SE ×2฿8,300

ISO MS-4019Made in Japan

Secondaries: 400–280–0–120–280–400 V AC 0.185 A (DC CT tube 190 mA / Si 180 mA) · 4.5 V 3.5 A ×2 · 0–4–5 V 4 A · 0–4–6.3 V 3 A
Application: PX25, PX4, AD1, RE604 SE ×2
Size: W110×D96×H108 mm (under chassis 32 mm)
Weight: 5.1 kg

Ask about MS-4019Primary wound for your mains voltage at no extra charge.

MS-4018370–400 V CT · 180 mAFor 300B SE ×2, 300B PP ×1฿7,400

ISO MS-4018Made in Japan

Secondaries: 400–370–0–370–400 V AC 0.18 A (DC CT tube 180 mA / Si 170 mA) · 5 V 3 A · 5 V 2.5 A ×2 · 0–6.3–10 V 2 A
Application: 300B SE ×2, 300B PP ×1
Size: W110×D96×H92 mm (under chassis 31 mm)
Weight: 4.5 kg

Ask about MS-4018Primary wound for your mains voltage at no extra charge.

MS-3716280–370 V CT · 160 mAFor PX25, RE604, AD1, PX4 SE ×2฿6,700

ISO MS-3716Made in Japan

Secondaries: 370–280–0–280–370 V AC 0.16 A (DC CT tube 160 mA / Si 150 mA) · 0–4–5 V 3 A · 4.5 V 3.5 A ×2 · 6.3 V 3 A
Application: PX25, RE604, AD1, PX4 SE ×2
Size: W110×D96×H82 mm (under chassis 30 mm)
Weight: 3.8 kg

Ask about MS-3716Primary wound for your mains voltage at no extra charge.

MS-3216280–320 V CT · 160 mAFor 2A3, 45 SE ×2฿6,700

ISO MS-3216Made in Japan

Secondaries: 320–280–0–70–280–320 V AC 0.16 A (DC CT tube 160 mA / Si 145 mA) · 5 V 3 A · 2.5 V 3 A ×2 · 6.3 V 3 A
Application: 2A3, 45 SE ×2
Size: W110×D96×H82 mm (under chassis 30 mm)
Weight: 3.8 kg

Ask about MS-3216Primary wound for your mains voltage at no extra charge.

MS-3221280–320 V CT · 210 mAFor 6V6, 6BQ5, 6F6 PP ×2฿6,700

ISO MS-3221Made in Japan

Secondaries: 320–280–0–70–280–320 V AC 0.205 A (DC CT tube 210 mA / Si 200 mA) · 5 V 3 A · 6.3 V 2 A ×3
Application: 6V6, 6BQ5, 6F6 PP ×2
Size: W110×D96×H82 mm (under chassis 30 mm)
Weight: 3.8 kg

Ask about MS-3221Primary wound for your mains voltage at no extra charge.

MS-4812250–480 V CT · 125 mAFor VT62, 801A SE ×2฿6,700

ISO MS-4812Made in Japan

Secondaries: 480–250–0–250–480 V AC 0.12 A (DC CT tube 125 mA / Si 115 mA) · 5 V 3 A · 6.3 V 3 A · 7.5 V 2 A ×2
Application: VT62, 801A SE ×2
Size: W110×D96×H82 mm (under chassis 30 mm)
Weight: 3.8 kg

Ask about MS-4812Primary wound for your mains voltage at no extra charge.

MS-2814250–280 V CT · 140 mAFor 6V6, 6BQ5 PP ×1 or SE ×2฿5,600

ISO MS-2814Made in Japan

Secondaries: 280–250–0–250–280 V AC 135 mA (DC CT tube 140 mA / Si 130 mA) · 5 V 2 A · 6.3 V 2 A ×3
Application: 6V6, 6BQ5 PP ×1 or SE ×2
Size: W94×D77×H78 mm (under chassis 31 mm)
Weight: 2.6 kg

Ask about MS-2814Primary wound for your mains voltage at no extra charge.

MS-2810250–280 V CT · 100 mAFor 6BQ5, 6GW8 SE ×2 · preamp฿5,100

ISO MS-2810Made in Japan

Secondaries: 280–250–0–250–280 V AC 100 mA (DC CT tube 100 mA / Si 100 mA) · 0–5–6.3 V 2 A · 6.3 V 3 A
Application: 6BQ5, 6GW8 SE ×2 · preamp
Size: W85×D70×H75 mm (under chassis 30 mm)
Weight: 2.3 kg

Ask about MS-2810Primary wound for your mains voltage at no extra charge.

MS-2603260 V CT · 30 mA + 15–17 VFor Preamplifier฿4,700

ISO MS-2603Made in Japan

Secondaries: 260–0–260 V AC 30 mA (DC CT 30 mA) · 0–15–17 V AC 2 A (DC bridge 1.2 A) · 6.3 V 1 A
Application: Preamplifier
Size: W85×D70×H60 mm (under chassis 22 mm)
Weight: 1.6 kg

Ask about MS-2603Primary wound for your mains voltage at no extra charge.

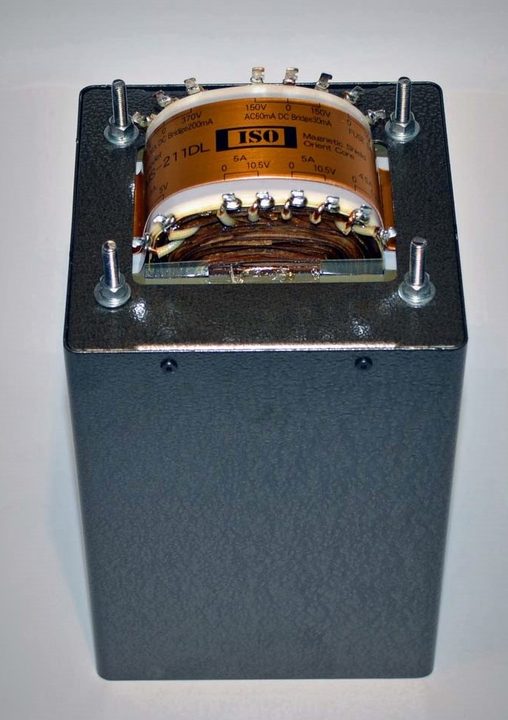

Power · rectangular case

หม้อแปลงไฟ ทรงสี่เหลี่ยม

Fully cased Orient-core power transformers with magnetic shield, for larger amplifiers such as 211, 845 and push-pull 300B. Primary voltage changed at no extra charge.

MS-211DL370 V + 150 V · 10.5 V filamentsFor 211, 845 SE ×2฿23,700

ISO MS-211DLMade in Japan

Secondaries: 370–0–370 V AC 0.36 A (DC bridge 200 mA) · 150–0–150 V AC 0.1 A (DC bridge 60 mA) · 10.5 V 5 A ×2 · 6.3 V 4.5 A · 5 V 3 A
Application: 211, 845 SE ×2
Size: W125×D125×H180 mm (under chassis 36 mm)
Weight: 11 kg

Ask about MS-211DLPrimary wound for your mains voltage at no extra charge.

MS-4233D370–420 V CT · 350 mAFor 300B PP ×2฿18,600

ISO MS-4233DMade in Japan

Secondaries: 420–370–0–120–370–420 V AC 0.33 A (DC CT tube 350 mA / Si 320 mA) · 5 V 4 A ×2 · 5 V 6 A · 0–6.3–10 V 3 A
Application: 300B PP ×2
Size: W125×D125×H138 mm (under chassis 36 mm)
Weight: 9.0 kg

Ask about MS-4233DPrimary wound for your mains voltage at no extra charge.

MS-4042D360–400 V · 420 mA bridgeFor KT88, 6550A, EL156 PP ×2฿17,000

ISO MS-4042DMade in Japan

Secondaries: 0–20–360–400 V AC 0.72 A (DC bridge 420 mA) · 70 V AC 60 mA · 6.3 V 4 A ×2 · 6.3 V 3 A ×2
Application: KT88, 6550A, EL156 PP ×2
Size: W125×D125×H138 mm (under chassis 36 mm)
Weight: 9.0 kg

Ask about MS-4042DPrimary wound for your mains voltage at no extra charge.

MS-4016D370–400 V doubler · 10 V filamentsFor 211, 845 SE ×2฿16,500

ISO MS-4016DMade in Japan

Secondaries: 0–370–400 V AC 0.6 A (DC voltage doubler 160 mA) · 150–0–150 V AC 60 mA · 10 V 5 A ×2 · 6.3 V 2 A ×2
Application: 211, 845 SE ×2
Size: W125×D125×H114 mm (under chassis 36 mm)
Weight: 8.0 kg

Ask about MS-4016DPrimary wound for your mains voltage at no extra charge.

MS-1913D145–185 V · voltage doubler 350 mAFor KT88, KT66, EL34 PP ×2฿14,300

ISO MS-1913DMade in Japan

Secondaries: 0–10–145–165–185 V AC 1.3 A (DC voltage doubler 350 mA) · 65 V AC 0.15 A · 6.3 V 3.6 A ×2 · 6.3 V 2.5 A ×2
Application: KT88, KT66, EL34 PP ×2
Size: W125×D125×H114 mm (under chassis 36 mm)
Weight: 7.7 kg

Ask about MS-1913DPrimary wound for your mains voltage at no extra charge.

MS-4023DⅡ360–400 V CT · 250 mAFor 300B SE ×2, KT88 PP ×1฿14,000

ISO MS-4023DⅡMade in Japan

Secondaries: 400–360–0–100–360–400 V AC 0.23 A (DC CT tube 250 mA / Si 220 mA) · 5 V 3.5 A ×2 · 0–6.3–10 V 3.5 A · 0–5–6.3 V 3.5 A
Application: 300B SE ×2, KT88 PP ×1
Size: W125×D125×H114 mm (under chassis 36 mm)
Weight: 7.3 kg

Ask about MS-4023DⅡPrimary wound for your mains voltage at no extra charge.

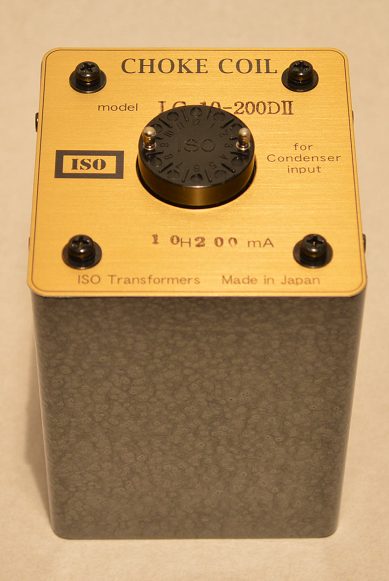

Choke coils

โช้คคอยล์

Filter chokes for capacitor-input and choke-input power supplies.

LC-15-150DⅡ15 H · 150 mAFor Capacitor-input filter฿5,100

ISO LC-15-150DⅡMade in Japan

Rating: 15 H 150 mA
Max current: 200 mA
DC resistance: 165 Ω
Application: Capacitor-input filter
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LC-15-150DⅡStock varies; we confirm availability and delivery time.

LC-10-200DⅡ10 H · 200 mAFor Capacitor-input filter฿5,100

ISO LC-10-200DⅡMade in Japan

Rating: 10 H 200 mA
Max current: 260 mA
DC resistance: 120 Ω
Application: Capacitor-input filter
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LC-10-200DⅡStock varies; we confirm availability and delivery time.

LC-5-250DⅡ5 H · 250 mAFor Capacitor-input filter฿5,100

ISO LC-5-250DⅡMade in Japan

Rating: 5 H 250 mA
Max current: 330 mA
DC resistance: 67 Ω
Application: Capacitor-input filter
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LC-5-250DⅡStock varies; we confirm availability and delivery time.

LC-3-350DⅡ3 H · 350 mAFor Capacitor-input filter฿5,100

ISO LC-3-350DⅡMade in Japan

Rating: 3 H 350 mA
Max current: 450 mA
DC resistance: 42 Ω
Application: Capacitor-input filter
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LC-3-350DⅡStock varies; we confirm availability and delivery time.

LE-12-150D12 H · 150 mAFor Capacitor-input filter, compact฿4,500

ISO LE-12-150DMade in Japan

Rating: 12 H 150 mA
Max current: 170 mA
DC resistance: 180 Ω
Application: Capacitor-input filter, compact
Size: W78×D72×H95 mm
Weight: 1.8 kg

Ask about LE-12-150DStock varies; we confirm availability and delivery time.

LE-8-200D8 H · 200 mAFor Capacitor-input filter, compact฿4,500

ISO LE-8-200DMade in Japan

Rating: 8 H 200 mA
Max current: 230 mA
DC resistance: 125 Ω
Application: Capacitor-input filter, compact
Size: W78×D72×H95 mm
Weight: 1.8 kg

Ask about LE-8-200DStock varies; we confirm availability and delivery time.

LE-5-250D5 H · 250 mAFor Capacitor-input filter, compact฿4,500

ISO LE-5-250DMade in Japan

Rating: 5 H 250 mA
Max current: 300 mA
DC resistance: 80 Ω
Application: Capacitor-input filter, compact
Size: W78×D72×H95 mm
Weight: 1.8 kg

Ask about LE-5-250DStock varies; we confirm availability and delivery time.

LL-20-150D20 H · 150 mA · choke inputFor Choke-input filter (also capacitor-input)฿8,400

ISO LL-20-150DMade in Japan

Rating: 20 H 150 mA
Max DC current: 200 mA
DC resistance: 220 Ω
Max AC voltage: 700 V
Min current (Imin): 35 mA
Application: Choke-input filter (also capacitor-input)
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LL-20-150DStock varies; we confirm availability and delivery time.

LL-12-200D12 H · 200 mA · choke inputFor Choke-input filter (also capacitor-input)฿8,400

ISO LL-12-200DMade in Japan

Rating: 12 H 200 mA
Max DC current: 260 mA
DC resistance: 145 Ω
Max AC voltage: 600 V
Min current (Imin): 50 mA
Application: Choke-input filter (also capacitor-input)
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LL-12-200DStock varies; we confirm availability and delivery time.

LL-5-300D5 H · 300 mA · choke inputFor Choke-input filter (also capacitor-input)฿8,400

ISO LL-5-300DMade in Japan

Rating: 5 H 300 mA
Max DC current: 350 mA
DC resistance: 55 Ω
Max AC voltage: 500 V
Min current (Imin): 100 mA
Application: Choke-input filter (also capacitor-input)
Size: W85×D80×H105 mm
Weight: 2.4 kg

Ask about LL-5-300DStock varies; we confirm availability and delivery time.

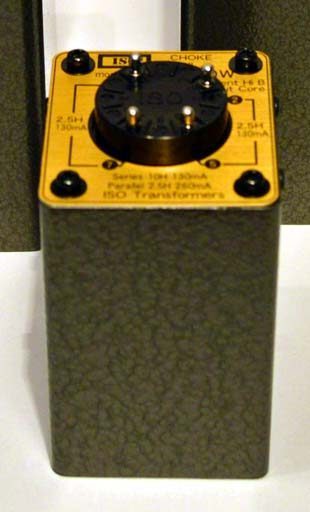

W choke (2 windings)

โช้คคอยล์ 2 ขดลวด

Two-winding chokes for capacitor-input supplies. Windings can be used in series or in parallel, never alone.

RC-160-15W160 H 15 mA (40 H 30 mA)For Capacitor-input filter฿4,500

ISO RC-160-15WMade in Japan

Rating: 160 H 15 mA (40 H 30 mA in parallel)
Max current: 20 mA (40 mA)
DC resistance: 1,160 Ω (290 Ω)
Application: Capacitor-input filter

Ask about RC-160-15WStock varies; we confirm availability and delivery time.

RC-60-35W60 H 35 mA (15 H 70 mA)For Capacitor-input filter฿4,500

ISO RC-60-35WMade in Japan

Rating: 60 H 35 mA (15 H 70 mA in parallel)
Max current: 50 mA (100 mA)
DC resistance: 730 Ω (183 Ω)
Application: Capacitor-input filter

Ask about RC-60-35WStock varies; we confirm availability and delivery time.

RC-10-130W10 H 130 mA (2.5 H 260 mA)For Capacitor-input filter฿4,500

ISO RC-10-130WMade in Japan

Rating: 10 H 130 mA (2.5 H 260 mA in parallel)
Max current: 150 mA (300 mA)
DC resistance: 130 Ω (33 Ω)
Application: Capacitor-input filter

Ask about RC-10-130WStock varies; we confirm availability and delivery time.

RC-28-80W28 H 80 mA (7 H 160 mA)For Capacitor-input filter฿4,500

ISO RC-28-80WMade in Japan

Rating: 28 H 80 mA (7 H 160 mA in parallel)
Max current: 90 mA (180 mA)
DC resistance: 360 Ω (90 Ω)
Application: Capacitor-input filter

Ask about RC-28-80WStock varies; we confirm availability and delivery time.

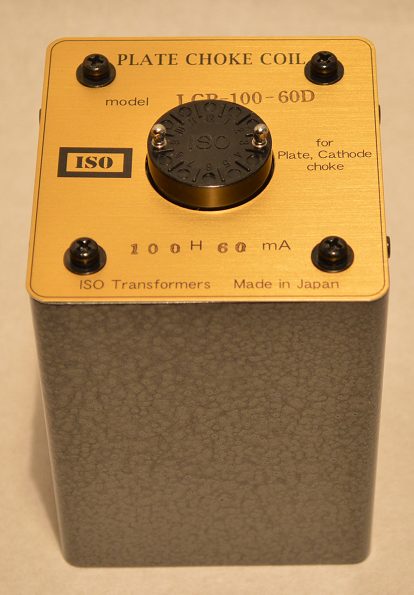

Plate / driver choke

เพลทโช้ค

High-inductance chokes for plate or cathode loading of driver tubes, also usable as B+ filter chokes.

LCP-60-80D60 H · 80 mAFor Driver plate or cathode choke · B+ filter฿8,400

ISO LCP-60-80DMade in Japan

Rating: 60 H 80 mA
Max current: 100 mA
Response (−1 dB): 7 Hz – 300 kHz (4 V, rp = 1 kΩ)
DC resistance: 570 Ω
Application: Driver plate or cathode choke · B+ filter

Ask about LCP-60-80DStock varies; we confirm availability and delivery time.

LCP-100-60D100 H · 60 mAFor Driver plate or cathode choke · B+ filter฿8,400

ISO LCP-100-60DMade in Japan

Rating: 100 H 60 mA
Max current: 100 mA
Response (−1 dB): 7 Hz – 300 kHz (4 V, rp = 1 kΩ)
DC resistance: 570 Ω
Application: Driver plate or cathode choke · B+ filter

Ask about LCP-100-60DStock varies; we confirm availability and delivery time.

Prices are final retail prices in Thai Baht, including import handling, for delivery in Thailand. Specifications from the ISO Transformers catalogue (Nov 2024). Overseas buyers, please ask for a quote.
