DSD files or other music format are all around us for today, easy to use and good sound
But CD player with non-oversampling DAC still remind me for “Real Sound”.
I already have non-oversampling DAC with TDA1541A S1,
really nice sound in my main audio system.
After read some topics in an internet, I’ve found many people use Sony Playstation
as a CD player and get benefit from non-oversampling DAC inside.
So I need another compact CD player to use for living room and choose PS1.
Many website and DIYer favor PS1 with SCPH-100x series
because it already has RCA connectors and prompt to use without any modification.
But SCPH-5xxx series can find frequently and I do not want to use opamp stage inside,
so SCPH-5xxx series is easier to modify except it has less information than 100x series.
From both websites below, I’ve got many ideas to apply with 5xxx series.
After remove top cover and laser unit.
Original power supply.
Many electrolytic capacitors that need to remove and replace.

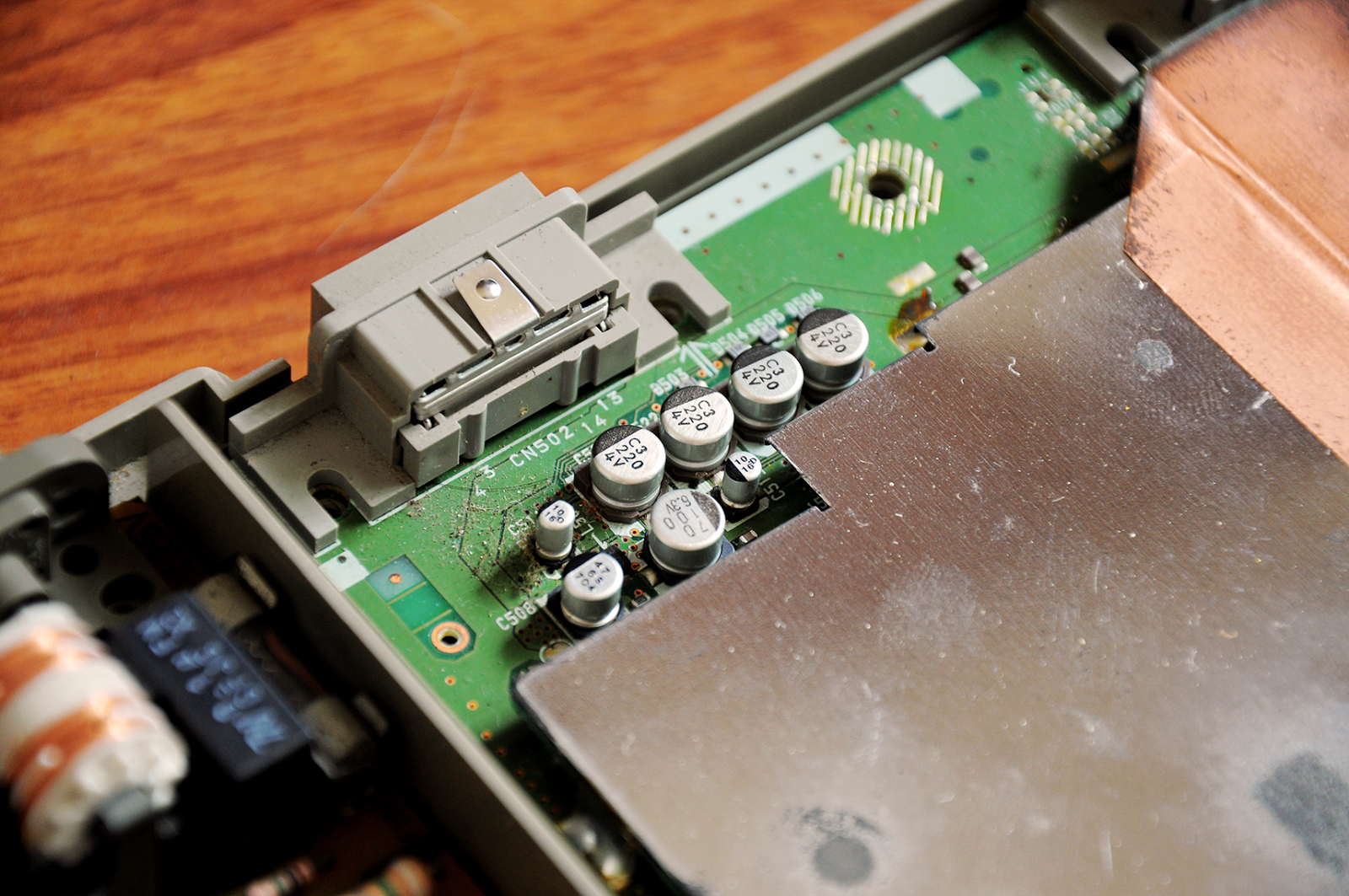

Previous owner change coupling capacitors for audio output stage. 🙂

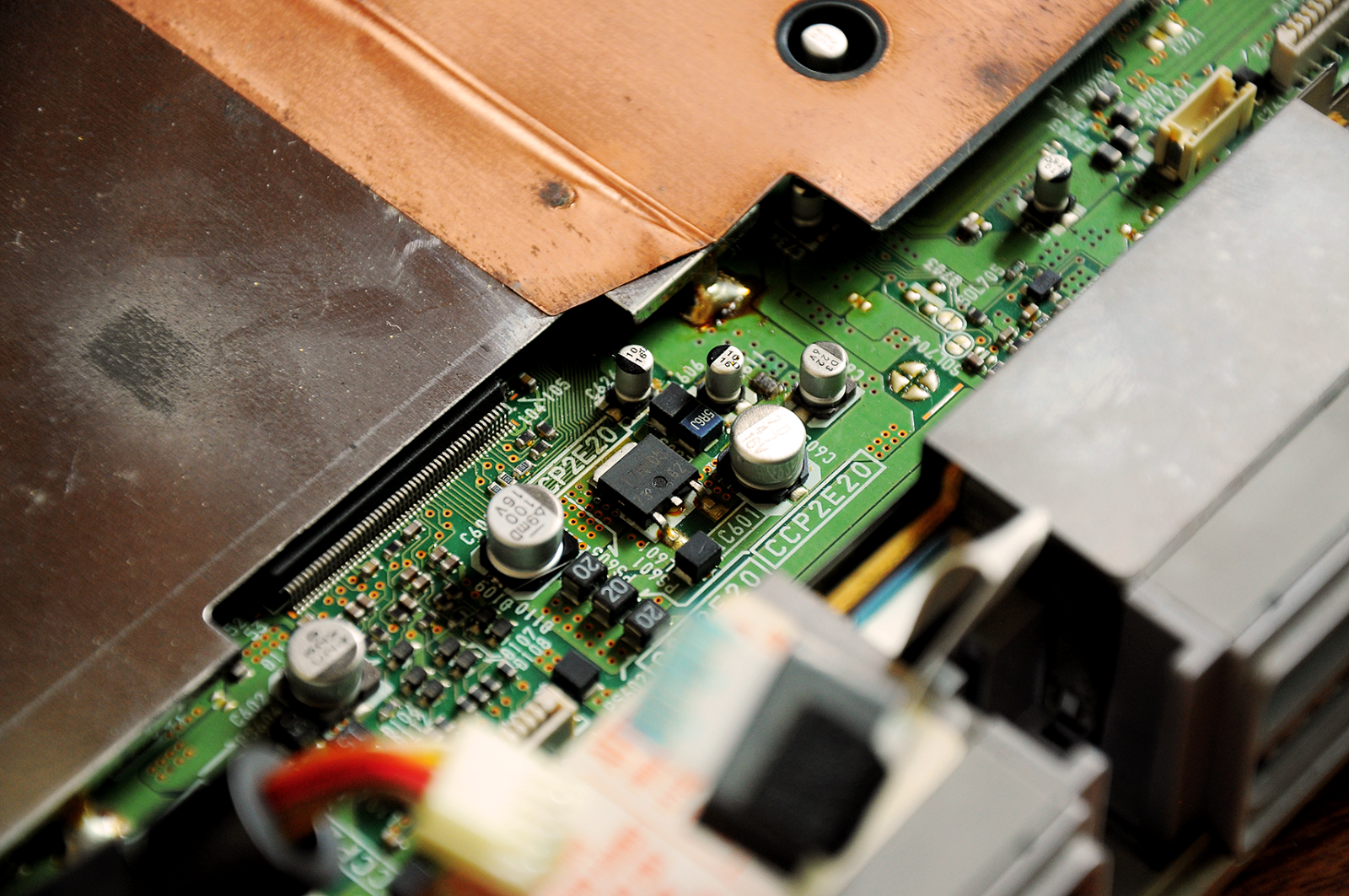

Mainboard before modify.
And mainboard after modify.
Bring audio signal from DAC chip with WE wires to external coupling capacitors.
Next step are modify power supply board, install coupling capacitor and RCA connectors.
Cheers !!!
